90anddeg; Rotation 868MHZ Antenna 5DBI high gain Omni Directional Antenna
andnbsp;
For this type can be made 2 type:
- TOP-868-4 without cable
- TOP-868-4 with cable
andnbsp;
Description
A flexible hinged whip Antenna with +5dBi high gain for general applications operating at 868MHz applications where high performance is required. Using this antenna will give optimum range and reliability to your application.
Features
andbull; Hinged Whip Antenna
andbull; Omni-Directionalandnbsp;
andbull; VSWR andlt;2.0
andbull; Dimensions 195 x 13mm
andbull; SMA Male Connectorandnbsp;
andbull; 50 Impedance
andbull; +3dBi Gain
andbull; ABS / Rubber Housingandnbsp;
andbull; Operates from -40 to+85C
andbull; Weight 22gramsandnbsp;
andnbsp;
andnbsp;
Specification:
| Item | Specifications |
| Antenna | Centerandnbsp;Frequency | 868MHz |
| Bandandnbsp;Width | CFandplusmn;8MHz |
| Polarization | Linear |
| Gain | 5dBi |
| V.S.W.R | ＜2.0 |
| Impendence | 50andOmega; |
| Connector | SMAandnbsp;Male |
| Environmental | Operatingandnbsp;Temperatureandnbsp; | -40℃~+85℃andnbsp; |
| Vibration | 10andnbsp;toandnbsp;55Hzandnbsp;withandnbsp;1.5mmandnbsp;amplitudeandnbsp;2hours |
| Environmentallyandnbsp;Friendly | ROHSandnbsp;Compliant |
andnbsp;
andnbsp;
Advantage:
1)antenna factory sell directly
2) long-term, strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package, brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good service
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
andnbsp;
Application:
Apply to applied to 868MHz terminal equipment.andnbsp;
ISM 868MHz horn antenna Ideal for many popular radio modules and social alarm equipment.
This wireless antenna is specially designed for Bluetooth applications , for example M2M ,various instruments, development work, access points ,pan-nodes etc. It also fits other wireless applications within the frequency range.
andnbsp;
Click here for the data sheet:
TOP-868-04.pdf
andnbsp;
andnbsp;

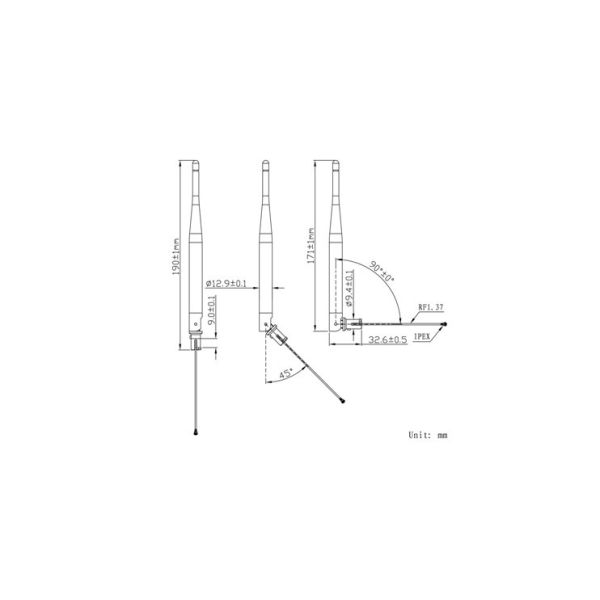

Drawing:
TOP-868-4
andnbsp;
andnbsp;
andnbsp;
TOP-868-4-1
andnbsp;
andnbsp;
andnbsp;
andnbsp;
Ourandnbsp; Antenna :
---Powerful Randamp;D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
andnbsp;
FAQ
andnbsp;1. Whatand#39;s the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
andnbsp;
2. andnbsp;How about the defective rateandnbsp;?
Answer: Less than 1%.
andnbsp;andnbsp;
andnbsp;3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
andnbsp;
andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
