BAS16W 100V 200mA Switching Diode with 4ns Reverse Recovery Dual Series Configuration SOT-323 Package and Tape & Reel Packaging for High-Speed Circuit Design
Features
Very high switching speed
Low junction capacitance
Low leakage current
Compliant to RoHS (w/o exemp.)
REACH, Conflict Minerals *)
Applications
Signal processing,High-speed
Switching, Rectifying
Commercial /industrial grade ')
Suffix -Q: AEC-Q101 compliant ')
Suffix -AQ: AEC-Q101 qualified ')
Description
The BAS16W is a dual series-configuration general-purpose switching diode in a SOT-323 package, designed for high-speed switching applications. lt features a high reverse breakdown voltage of 100V and a continuous forward current capability of 200mA, ensuring stable performance in high-frequency circuits. With an ultra-fast reverse recovery time (4ns), it significantly reduces switching losses and improves system efficiency.
The dual series configuration integrates two diodes in a compact form factor, supporting highdensity PCB layouts. lts miniature sOT-323 package is compatible with automated assembly processes, and the tape and reel packaging meets mass production requirements. Compliant with RoHs standards, this diode is ideal for high-speed rectification, clamping, and logic control circuits in consumer electronics, communication devices, and power management modules.
INFORMATION
| Category | | |
| Mfr | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | | |
| Technology | | |
| Voltage - DC Reverse (Vr) (Max) | | |
| Current - Average Rectified (Io) | | |
| Voltage - Forward (Vf) (Max) @ If | | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | | |
| Current - Reverse Leakage @ Vr | | |
| Capacitance @ Vr, F | | |
| Grade | | |
| Qualification | | |
| Mounting Type | | |
| Package / Case | | |
| Supplier Device Package | | |
| Operating Temperature - Junction | |

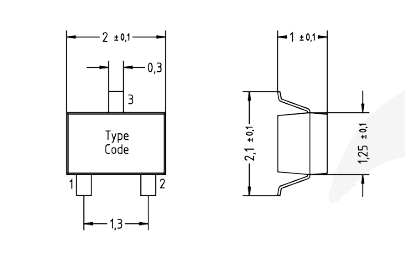

Drawing
